Bridge Building Lesson Grade 6–8: Design and Test a Model Bridge

This free bridge building lesson introduces students to how math and engineering work together in real construction projects. Students research bridge types, design a plan, build a model bridge, and evaluate how well their design performs under load.

Overview

Students work in small teams to act as engineering companies hired to design a bridge. They investigate real bridge structures, create scale drawings, estimate materials, and construct a physical model. The project ends with testing each bridge’s strength and analyzing why some designs performed better than others.

Subject Connections

Mathematics is central as students measure lengths, create scale drawings, estimate materials, and analyze load results. Science supports the lesson as students observe forces and explain structural stability. English Language Arts is used when students record observations and present design reasoning. Technology may be used for research on real bridges and for documenting results.

Learning Goals

Students apply measurement, ratio, and proportional reasoning to a real problem. They use geometric thinking to design a stable structure and explain how forces act on a bridge. Students also communicate mathematical ideas through diagrams, calculations, and presentations.

Materials

• Toothpicks, straws, or craft sticks
• White glue or school glue
• String or thread
• Graph paper
• Rulers and measuring tape
• Coins, washers, or weights for testing
• Small cardboard boxes or books to create a testing gap

Preparation

Prepare a testing station with a gap between two desks or boxes to represent a river span. Gather weights for strength testing. Decide a maximum length for bridges and a limited quantity of building materials per group so students must plan carefully before construction.

Teaching Procedure

Plan for five sessions of 45–60 minutes, with drying time between building and testing.

Session 1

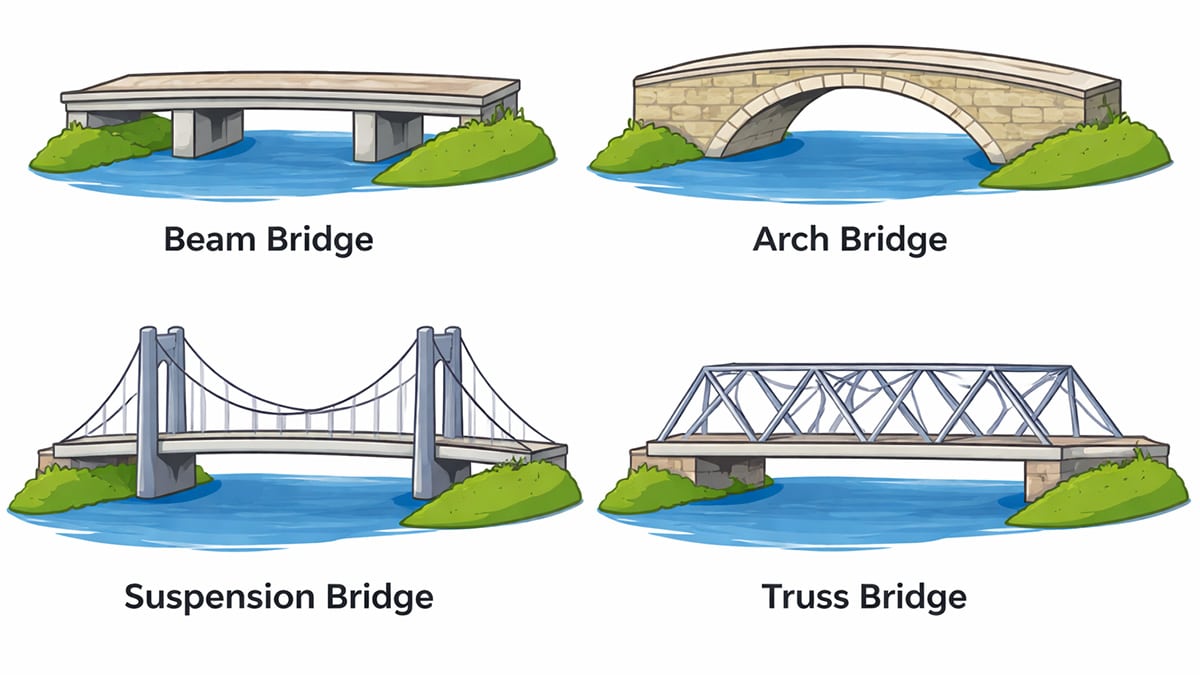

1. Activity: Bridge Strength Noticing (photos, notebook sketching). Show several real bridge photos and have students list features they believe increase strength, then sketch one bridge and label at least three structural features they notice (supports, triangles, cables, arches) to create a shared class “strength features” anchor chart.
2. Students research common bridge types (beam, arch, suspension, truss) and sketch at least two possible designs in their notebooks.
3. Teams discuss ideas and choose one design to develop further.

Session 2

1. Teach how to create a scale drawing using graph paper and measurements.
2. Activity: Scale Drawing Checkpoint (graph paper, ruler, target span). Teams produce a scale drawing that includes the full span length, height, and at least two labeled supports, then swap plans with another team to verify measurements match the required span and the scale is applied consistently.
3. Students estimate the number of building pieces required and revise their plan if needed.

Session 3

1. Review construction safety and demonstrate strong joints and triangular supports.
2. Teams begin building the bridge according to their drawings.
3. Students record daily progress and note any design changes they make.

Session 4

1. Teams complete construction and allow glue to dry.
2. Each group predicts how much weight their bridge will hold and explains why.
3. Activity: Prediction With Evidence (bridge model, recording sheet). Before testing, each team states a specific predicted maximum load (in coins/washers/grams), then writes or records two evidence-based reasons tied to their design (for example, triangles, joint placement, symmetry, load path) to compare with results after testing.

Session 5

1. Place each bridge on the testing span.
2. Gradually add weights while students record how much the bridge supports.
3. After testing, students compare results and discuss which structural features increased strength.

Assessment

• Accuracy of scale drawing
• Use of measurements and estimates
• Participation during construction
• Bridge performance during testing
• Explanation of design decisions

Differentiation

Provide a sample bridge diagram for students who need support with planning. Allow advanced students to calculate strength-to-weight ratios or redesign their bridge after testing. Students who struggle with writing may explain their design orally.

Grade Adaptation

Grade 7 students design a bridge plan to scale, build a model, and test it under increasing load while recording results and explaining which features improved strength. Grade 6 students can use a simpler required span and a provided scale option (for example, 1 square = 1 unit) with fewer constraints on material estimates. Grade 8 students can add a design constraint such as a maximum mass or cost, calculate strength-to-weight (or strength-to-cost) ratios, and justify a redesign based on test data.

Extension Ideas

Students can redesign their bridge to improve strength using fewer materials. Another option is comparing their design to a famous real-world bridge and explaining similarities. Classes may also create a class chart showing the relationship between structure type and load supported.
